Autoradio 2DIN JCV930 GPS Dual Zone HD 7 Pollici Touch DVB-T



Add to cart
Quantità maggiori possono essere aggiunte in fase d'acquisto


Autoradio 2DIN JCV930, modello esclusivo, di ultima generazione dal design curato, munito di funzioni uniche. Lo schermo è pari a 7 Pollici Touch Screen LCD TFT Motorizzato. La qualità video è eccezzionale grazie all'alta risoluzione HD 800x480 Pixels in modalità 16:9 o 4:3. E' di particolare interese il dispositivo di sicurezza, che consiste nell'estraibilità del pannellino tasti frontale, estremamente leggero e di dimensioni contenute. In assenza del pannello tasti l'autoradio risulterà inutilizzabile.

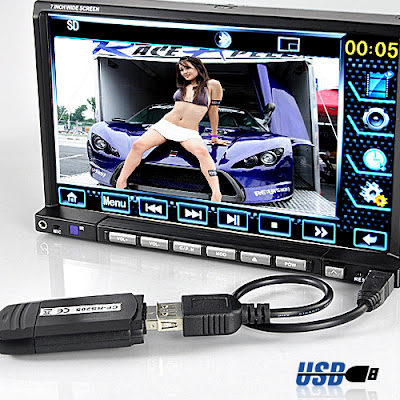

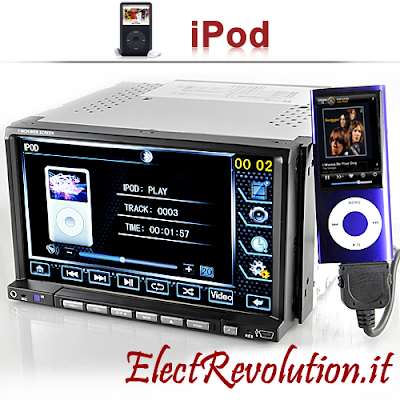

La velocità di esecuzione e la reattività dei processi è assicurata grazie al processore dedicato Samsung 400 MHz e la Ram DDR SDRMA 64 Mb. La memoria interna è pari a 128Mb, può essere ampliata grazie all'inserimento di schede di memoria esterne come : USB ( Max Size 8Gb ) SD ( Max Size 8Gb ) Ipod.

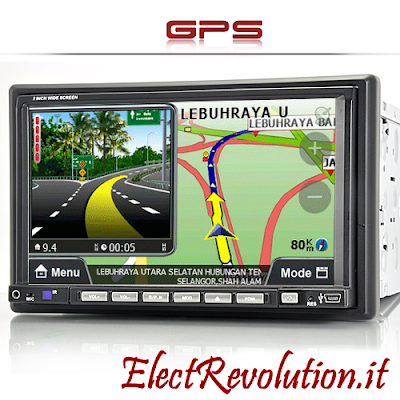

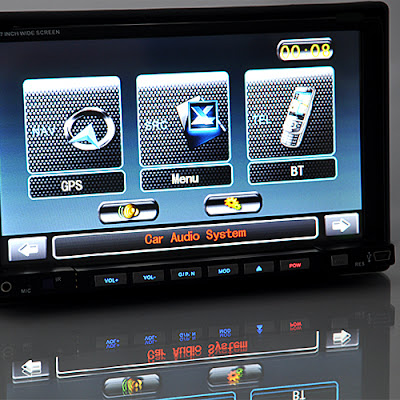

L'Autoradio JCV930 è munito di un modulo di ricezione GPS integrato con chipset Atheros di ultima concezione, studiato per una maggiore sensibilità nel calcolo delle coordinate ed una potenza maggiore del segnale anche in aree disagiate. L'interfaccia grafica di navigazione supportata è la GUI 3D Touch. E' integrato il sistema operativo Windows Ce che vi permetterà di installare e gestire tutti i maggiori software di navigazione come Tomtom, Igo, Route66 etc...  escluso Garmin. In base alla versione software installata potrete utilizzare funzionalità avanzate come : Lane Assist, Calcolo Percorso Veloce, Aggiornamento in tempo reale Traffico e Meteo, POI etc......

Se analizziamo l'aspetto multimediale dell' Autoradio JCV930, è possibile notare la varietà di formati e supporti multimediali riprodotti, come un vero e proprio Player professionale, sono supportati i seguenti supporti e formati attualmente in circolazione nel web come : DVD, CD, VCD, CD-R/RW, CD+R/RW, DVD-R/RW,DIVX 3 AVI, DIVX 5 AVI, DIVX 5 DIVX, MPEG 1/2, VOB, XVID AVI, XVID MP4, DAT ,MP3, WMA, AAC, M4A ,JPEG. La potenza audio è gestita da un OutPut pari a 60W x 4 Canali.

L'Autoradio JCV930 è munito della funzione Dual Zone, ideale per l'utilizzo contemporaneo del software di navigazione e la riproduzione FM. Infatti sarà possibile ascoltare la radio ed essere aggiornati in tempo reale riguardo un eventuale cambio di percorso, poichè il software ridimensionerà automaticamente la riproduzione audio fm al fine di comunicare gli aggiornamenti del software di navigazione.

Rimanendo nel campo Entertainment Auto, avrete la possibilità di visionare i vostri programmi tv preferiti, soap, telefilm, film, video clip, eventi sportivi in qualità digitale terrestre e ascoltare le stazioni radio grazie ai ricevitori integrati DVB-T e FM.

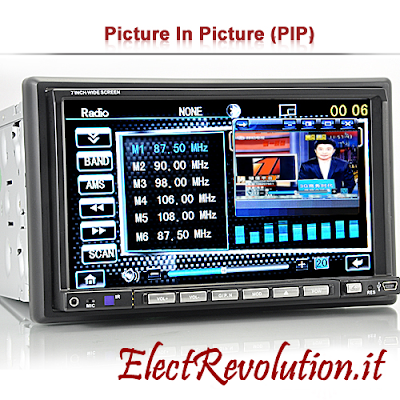

Una delle funzioni rivoluzionari nel campo della riproduzione multimediale è la funzione PIP, che permetterà la multivisione delle fonti video. La funzione PIP specificamente interessera le funzioni : Tv Digitale, GPS, Lettore DVD. Potrete quindi riprodurre contemporaneamente due delle funzioni precedentemente indicate nelle seguente modalità : La prima fonte in maxi schermo e la seconda fonte in mini schermo laterale.

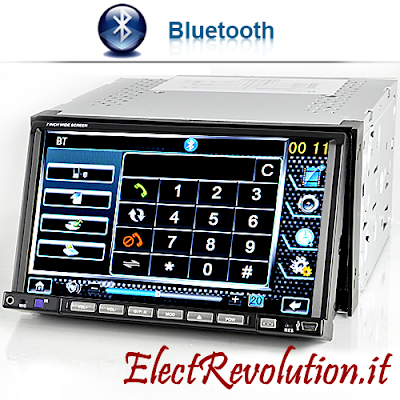

Ultima funzione, ma non per importanza il Bluetooth, ideale per la comunicazione in viva voce. Infatti, potrete effettuare e ricevere comunicazioni telefoniche gestendole tramite il pannello touch screen ingrato. L'autoradio JCV930 si collegherà al vostro cellulare in bluetooth permettendo all'autista di comunicare in totale libertà.

L'Autoradio JCV930 è quindi un prodotto hi-tech auto completo, che eventualmente può essere ampliato tramite componenti esterne come : Camera Car Parking, Subwoofer Dedicato, Monitors Esterni, Coppie Poggiatesta Esterne, Fonti video esterne etc.......

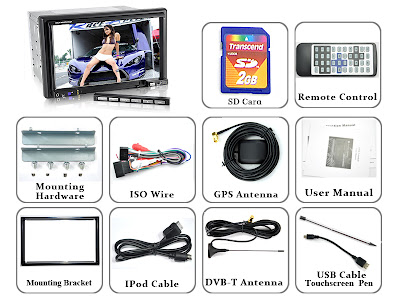

Sono inclusi nelle confezione i seguenti accessori : 1 x Autoradio JCV930 2DIN GPS Dual Zone HD + 1 x Telecomando con Batterie incluse + 1 x 2GB MicroSD con software di navigazione in versione valutativa + 1 x Antenna GPS Magnetica 3 Metri + 1 x Antenna DVB-T Magnetica 3 Metri + 1 x Cavo USB + 1 x Cavo Ipod + 1 x Kit Fissaggio Auto + 1 x Pen Stylus + 1 x Manuale Utente.

Caratteristiche Tecniche

  • Car navigation on-board processor: Samsung  S3C2440A CPU
    - Processor speed: 400MHz
    - DDR SDRAM: 64 MB
    - Internal Flash Memory: 128 MB
    - External Memory (SD card support): up to 8GB (free 2GB SD card included)
    - Operating System: Microsoft Windows CE 5.0 (compatible with all major GPS software packages)
  • GPS specifications:
    - GPS receiving chip: Atheros AR1511
    - Advanced tracking: YES (–160dBm tracking sensitivity extends positioning coverage into places like urban canyons and dense foliage where the GPS was not possible before)
    - Receiver Type: L1 frequency band, C/A code, 20-channels
    - Tracking: -160dBm
    - Acquisition: -144dBm
    - Position: 3.0m CEP50 without SA (Typical Open Sky)
    - Velocity: 0.1m/s without SA
    - Timing (PPS): 60ns RMS
    - Cold Start: 36s (Typical Open Sky)
    - Warm Start: 30s
    - Hot Start: 2s
    - Re-Acquisition: <1s
    - Tracking: 35mA @3V Vcc (Typical)
    - Acquisition: 35mA
    - Navigation data update rate: 1Hz
    - Altitude: Max 18,000m
    - Velocity: Max 515m/s
    - Acceleration: Less than 4g


    - GUI Interface: YES - 3D type
    - Touchscreen Interface: YES
    - Operating Environment: WIN CE 5.0
    - PIP (Picture in Picture) Function
    - Dual Zone Function
    - GPS Menu Languages: English (United Kingdom), English (United States), Mandarin Putonghua Chinese, Cantonese Chinese, Taiwanese Chinese, German, French, Italian, Dutch, Spanish, Romanian, Portuguese (Portugal), Portuguese (Brazil), Swedish, Danish, Norwegian, Finnish, Czech, Greek (Actual voice and display language depends on GPS software package)

  • Disc compatibility: DVD, CD, VCD, CD-R/RW, CD+R/RW, DVD-R/RW
  • Media Formats Supported:
    - Video: DIVX 3 AVI, DIVX 5 AVI, DIVX 5 DIVX, MPEG 1/2, VOB, XVID AVI, XVID MP4, DAT
    - Audio: MP3, WMA, AAC, M4A
    - Picture: JPEG
  • External Memory
    - USB Drive: YES (max 8 GB)
    - SD Card: YES (max 8 GB)
  • Operation: Touch Screen or Remote Control
  • Display Information
    - Screen: 7 Inch TFT LCD
    - Resolution: 800 x 480
    - Angle: 0-90 (Motorized sliding display panel)
    - Video Systems: PAL, NTSC, AUTO
  • Audio Information
    - Max Audio Output: 60W x 4
    - Signal-To-Noise Ratio (SNR): >85dB
    - User adjustable EQ: Bass, Treble, Balance, and Fade
  • DVD Information
    - PIP (Picture in Picture) Function
    - Auto Play ON/OFF
    - 16:9, 4:3 PS, 4:3 LB
    - DVD Menu Languages: English, Chinese, German, Spanish, French, Italian, Russian
  • DVB-T Information
    - DVB-T receiving standard: MPEG-2
    - Automatic and Manual Search
    - Display: 16:9, 4:3
    - PIP (Picture in Picture) Function
  • AM/FM Radio Tuner Information
    - AM Frequency Range: 522~1710KHz (Worldwide)
    - FM Tuning Range: 87.5~108.0MHz (Worldwide)
    - RDS System: YES
    - PTY (Program Type), AF (Alternative Frequencies), TA (Traffic Announcements), Local DX Switch
  • Bluetooth Information
    - Pair with mobile phone - then use touchscreen interface
    - Dial, Answer, Stop Call
    - Call History (Dialed, Received, Missed)
    - Volume Control
    - Touchscreen Keypad
    - Pair with your cellphone and play music from your phone through your car speakers
  • Media Inputs

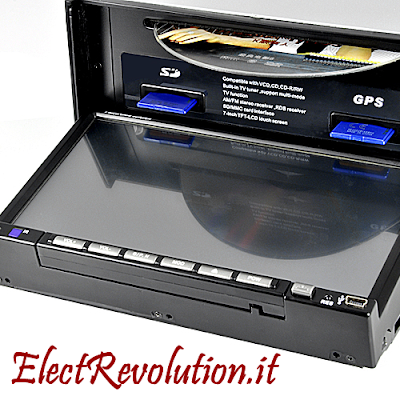

    - DVD/CD disc slot (behind touchscreen)
    - SD/MMC card slot (behind touchscreen)
    - GPS card slot (behind touchscreen)
    - Mini USB input (front)
    - AUX input (front)
    - GPS Antenna (rear)
    - DVB-T Antenna (rear)

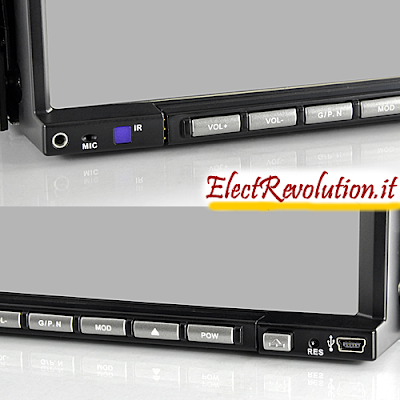

  • Front Panel Controls
    - Microphone
    - Power Button
    - Remote Control Sensor
    - Mini-USB Port
    - Reset Button
    - AUX-IN
    - Eject Button
    - Tuning/Select Tracks
    - Volume Adjust
    - Mute/GPS
    - Band Button
    - Mode Button
  • Primary AV Cables / Wires
    - DVB-T antenna port IN
    - GPS antenna port IN
    - IPOD connector
    - Rearview CCD Camera IN
    - Video IN
    - Video OUT x2
    - Aux-L IN
    - Aux-R IN
    - Subwoofer
    - RCA Audio OUT x2 (front L and R)
    - RCA Audio OUT x2 (rear L and R)
    - Left Front Speaker x2
    - Right Front Speaker x2
    - Left Rear Speaker x2
    - Right Rear Speaker x2
  • Subwoofer output: FR/FL/RR/RL 4-channel RCA output (2V Preout)
  • Dimensions W: 178 mm H: 100 mm D: 160 mm (with front panel: 180 mm)
  • OSD Languages: English, Simplified Chinese, Traditional Chinese, Arabic, Russian, Spanish, Vietnamese, Thai
  • Certifications: CE, FCC, ROHS
